Customized 1.2mm Thickness Double Inflated Pillow Plate plates for Heat Exchanger

1 세트
MOQ
USD180,000-USD650,000
가격
Customized 1.2mm Thickness Double Inflated Pillow Plate plates for Heat Exchanger
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
재료: SS304
크기: 11.5*1m
두께: 1.2mm
양각: 양각
기능: 열전달
용법: 열교환 기
맞춤형: 사용 가능
MOQ: 1개
기본 정보
원래 장소: 중국
브랜드 이름: Hanpu
인증: CE ISO
모델 번호: 2*2.5m
결제 및 배송 조건
포장 세부 사항: 깔판 또는 나무로 되는 케이스
배달 시간: 5-8영업일
공급 능력: 달 당 200sets
제품 설명

Customized 1.2mm Thickness Double Inflated Pillow Plate plates for Heat Exchanger

Introduction

Pillow Plates, also called dimpled plates or thermo plates, consists of two stainless steel sheets that are laser welded together by welding a custom circle weld pattern. Then the plate is inflated by using water pressure, which creates a specific single or double embossed profile – the pillow plate, through which the cooling or heating is conducted. The thickness and the spot pattern are determined by the pressure requirements.



Function

1. Pillow plates as air-/water/ heat exchanger

Additionally to the temperation of liquids pillow plates are also used as air/liquid heat exchangers. In case of polluted or wasted air and if there are high demands for cleaning, more and more pillow plates are used as air/water heatexchanger. The large exchange surface and the god possibilities for cleaning are important features for this type of heat exchanger.



2. Intensive temperature exchange

The large surface of the pillow plates is creating a good and intensive exchange of temperature between the fluid inside the pillow plates and the fluid outside the plates, another advantage is the good possibility for cleaning. Pillow plates are also used in the heat recovery.



Specification

Product Name Pillow plate heat exchanger
Material Stainless Steel
Color Nickel White
Standard DIN GB ISO JIS BA ANSI ASMI
Grade SUS201,SUS304,SUS316,DSS2205
Overview double pillow embossed plate material ratios

Pillow plate 0.8mm+0.8mm pillow plate 1.0mm+1.0mm

Pillow plate1.2mm+1.2mm

Pillow plate1.5mm+1.5mm

Pillow plate2.0mm+2.0mm

Overview single pillow embossed plate material ratios Pillow plate 0.8 mm + 2.0 mm base plate
pillow plate 1.0 mm + 2.5 mm base plate
pillow plate 1.2 mm + 4.0 tot 15 mm base plate
pillow plate 1.5 mm + 4.0 tot 15 mm base plate
pillow plate 2.0 mm + 5.0 tot 15 mm base plate



Drawing

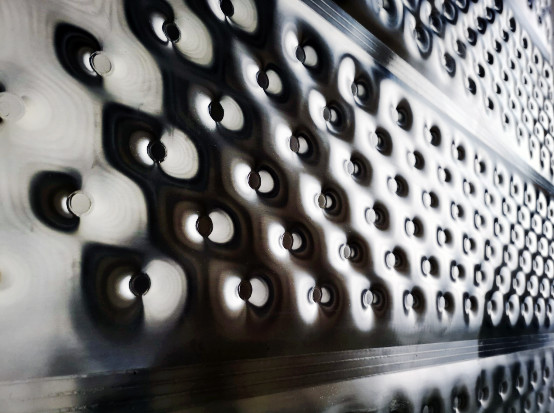

Customized 1.2mm Thickness Double Inflated Pillow Plate plates for Heat Exchanger 0

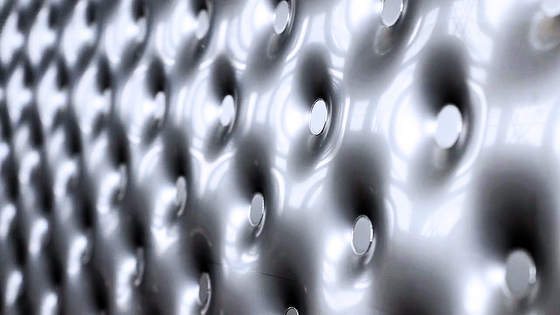

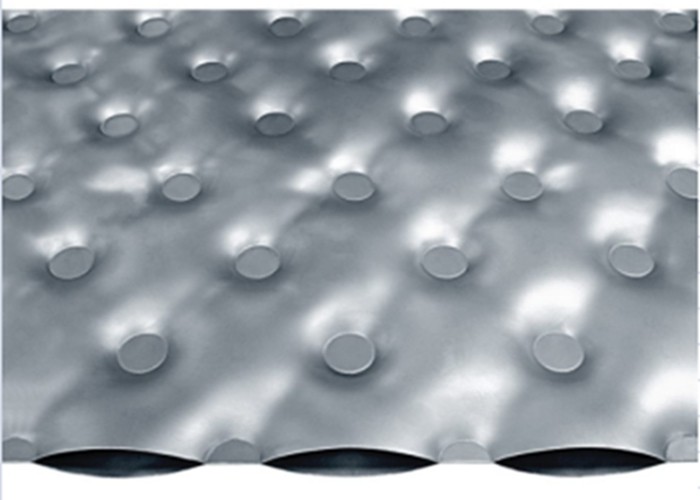

Customized 1.2mm Thickness Double Inflated Pillow Plate plates for Heat Exchanger 1Customized 1.2mm Thickness Double Inflated Pillow Plate plates for Heat Exchanger 2
